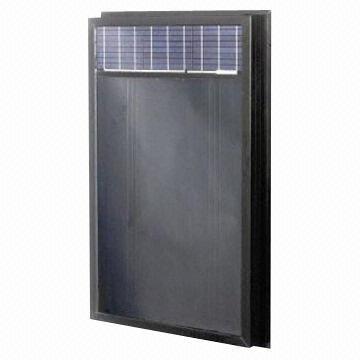

Solar Air Collector - 1000 Watts SAH34

SKU: N-282-OS
USD $726
Out of stock. This item can be backordered

SAH34 - Dual Vent Solar Air Collector With Digital Thermostat

SAH34 - Dual Vent Solar Air Collector  With Digital Thermostat

Work Principle

Functions

  • Heating circularly in winter
  • Heating fresh air or ventilating in spring or autumn

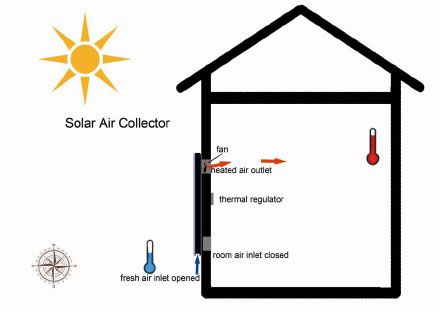

Fresh air inlet is opened

When the fresh air inlet is opened, room air inlet closed, the system brings in heated fresh air into the room.

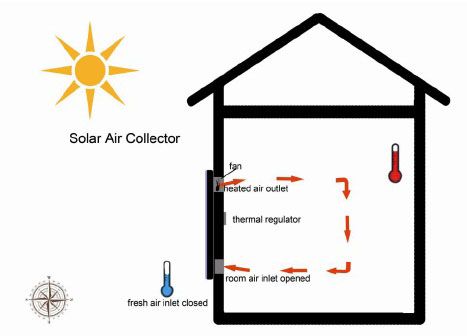

Fresh air inlet is closed

When the fresh air inlet is closed, it is possible to heat the indoor air circularly in winter, by opening the room air inlet underneath.

Schematic Diagram SAH34 Dual Vent

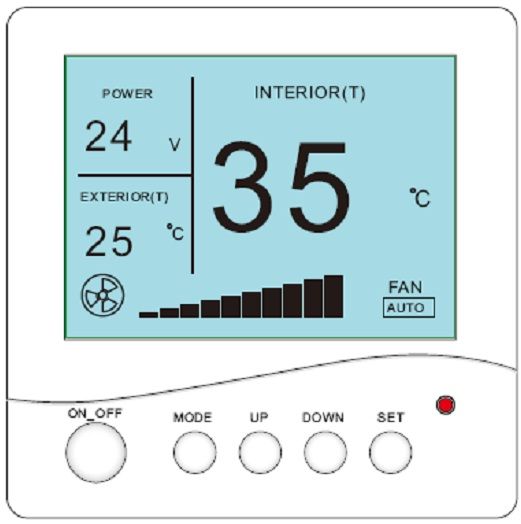

Digital Thermostat included

Digital Thermostat

Parameters:

Model

SAH34 - Single Vent

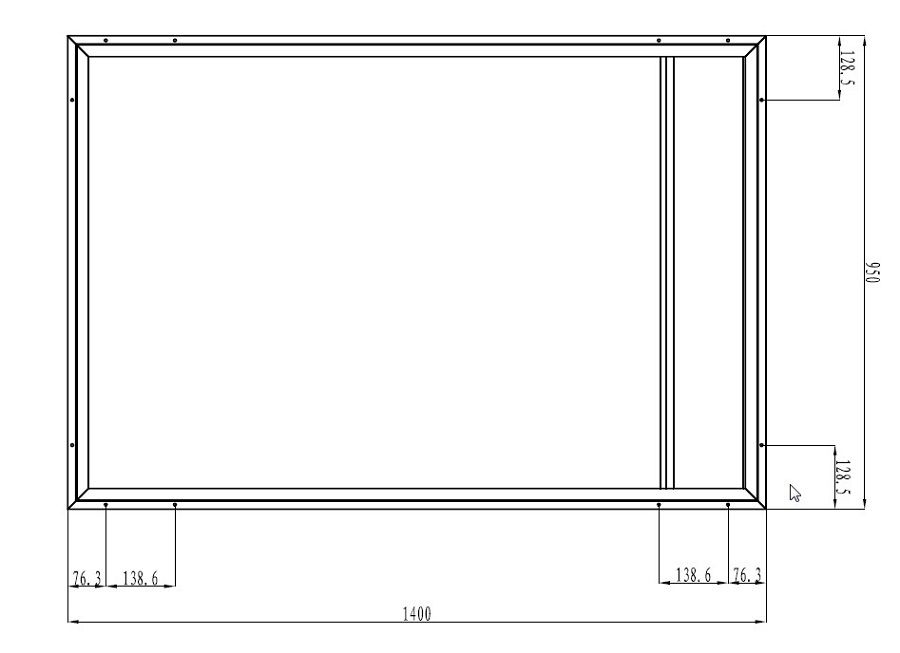

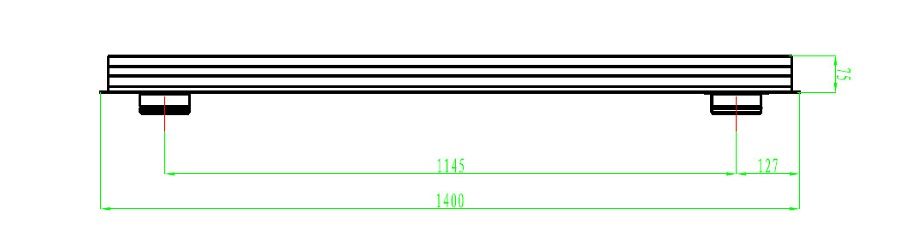

Panel dimensions 95 x 140 x 7.7 cm
Weight 29 kg
Fan output to 120 m3 / h
Footprint absorber 1.3 m2
Photovoltaic performance 20 W
Performance max. 1000 W/ h
Room area/space coverage 75 m2 185 m3
Temperature rise 35-40 °C
