Hanwha QCell Peak 270 Mono 60 Cell

Hanwha QCell Peak 270 Mono 60 Cell

$USD 300.00

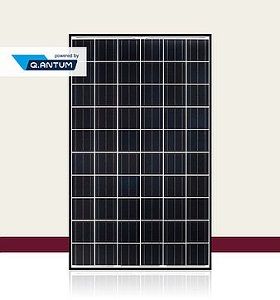

QCell Peak 270

QCell Peak 270
With its top performances and completely black design, the new Q.PEAK BLK-G3 is the aesthetic model athlete. The third module generation from Q CELLS has been optimised across the board: improved output yield, higher operating reliability and durability, quicker installation and more intelligent design – Made in Europe.

INNOVATIVE ALL-WEATHER TECHNOLOGY

Maximum yields with excellent lowlight and temperature behaviour.

ENDURING HIGH PERFORMANCE

Long-term Yield Security due to Anti PID Technology1, Hot-Spot Protect, and Trace able Quality Tra.Q™.

Long-term stability due to VDE Quality Tested – the strictest test program.

SAFE ELECTRONICS

Protection against short circuits and thermally induced power losses due to breath able junction box and welded cables.

Increased flexibility due to MC4-intermateable connectors.

PROFIT-INCREASING GLASS TECHNOLOGY

Reduction of light reflection by 50%, plus long-term corrosion resistance due to high-quality »Sol-Gel roller coating« processing.

LIGHTWEIGHT QUALITY FRAME

Stability at wind loads of up to 5400 Pa with a module weight of just 19 kg due to slim frame design with high-tech alloy.

MAXIMUM COST REDUCTIONS

Up to 29% lower logistics costs due to higher module capacity per box.

EXTENDED WARRANTIES

Investment security due to 12-year product warranty and 25-year linear performance warranty2.

  1. APT test conditions: Cells at -1000 V against grounded, with conductive metal foil covered module surface, 25°C, 168h
  2. See data sheet on rear for further information.
MECHANICAL SPECIFICATION
Format 1670 mm x 1000 mm x 35 mm (including frame)

Click to Zoom

Q Cell Peak Specification
Weight 19 kg
Front Cover 3.2 mm thermally pre-stressed glass with anti-reflection technology
Back Cover Black Composite film
Frame Black Anodised aluminium
Cell 6 x 10 monocrystalline solar cells
Junction box 110 mm x 115 mm x 23 mm Protection class IP67, with bypass diodes
Cable 4 mm² Solar cable; (+) 1210 mm, (-) 1210 mm
Connector SOLARLOK PV4, IP68
ELECTRICAL CHARACTERISTICS
PERFORMANCE AT STANDARD TEST CONDITIONS (STC: 1000 W/m², 25˚C, AM 1.5G SPECTRUM)1
NOMINAL POWER (+5W/-0W) [W]  260  265 270 275
Average Power  PMPP [W] 262.5 267.5 272.5 277.5
Short Circuit Current  ISC [A] 9.02 9.08 9.14 9.21
Open Circuit Voltage  VOC [V] 37.93 38.22 38.51 38.80
Current at PMPP  IMPP [A] 8.53 8.60 8.67 8.74
Voltage at PMPP  VMPP [V] 30.77 31.10 31.42 31.73
Efficiency (Nominal Power)  η [%] ≥15.6 ≥15.9 ≥16.2 ≥16.5
PERFORMANCE AT NORMAL OPERATING CELL TEMPERATURE (NOCT: 800 W/m2, 45 ±3˚C. AM 1.5G SPECTRUM)2
NOMINAL POWER (+5W/-0W)  [W] 260 265 270 275
Average Power  PMPP [W] 193.3 197.0 200.7 204.3
Short Circuit Current  ISC [A] 7.27 7.32 7.37 7.43
Open Circuit Voltage  VOC [V] 35.08 35.35 35.63 35.90
Current at PMPP  IMPP [A] 6.70 6.76 6.82 6.88
Voltage at PMPP  VMPP [V] 28.85 29.14 29.44 29.72
Measurement tolerances STC: ±3% (Pmpp); ±10% (Isc, Voc, Impp, Vmpp) 2 Measurement tolerances NOCT: ±5% (Pmpp); ±10% (Isc, Voc, Impp, Vmpp)
TEMPERATURE COEFFICIENTS (AT 1000W/m2, 25°C, AM 1.5G SPECTRUM)
Temperature Coefficient of ISC  α [%/K]  +0.04 Temperature Coefficient of VOC  β [%/K]  −0.33
Temperature Coefficient of PMPP  Y [%/K]  −0.42

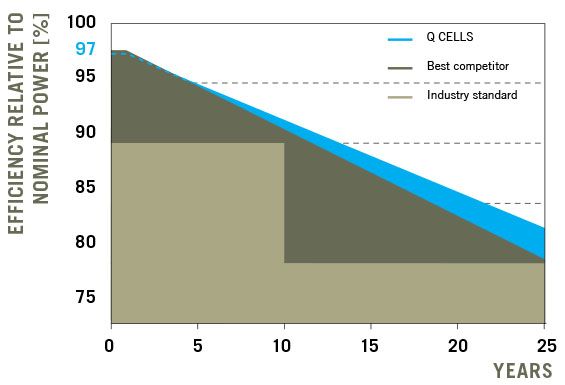

Q CELLS PERFORMANCE WARRANTY


At least 97% of nominal power during first year. Thereafter max. 0.6% degradation per year.

At least 92% of nominal power after 10 years.

At least 83% of nominal power after 25 years.

All data within measurement tolerances. Full warranties in accordance with the warranty terms of the Q CELLS sales organisation of your respective country.

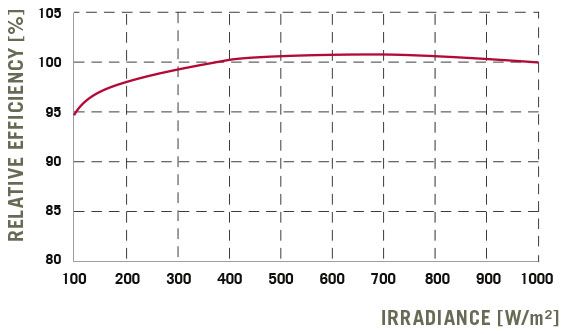

PERFORMANCE AT LOW IRRADIANCE

PERFORMANCE AT LOW IRRADIANCE


The typical change in module efficiency at an irradiance of 200 W/m² in relation to 1000 W/m² (both at 25°C and AM 1.5G spectrum) is -2% (relative).

PROPERTIES FOR SYSTEM DESIGN
Maximum System Voltage VSYS [V] 1000 Safety Class II
Maximum Reverse Current IR [A] 20 Fire Rating C
Wind /Snow Load (in accordance with IEC 61215) [Pa] 5400 Permitted module temperature on continuous duty -40°C up to +85°C



Black Monocrystalline Solar module

QCell Peak 270

With its top performances and completely black design, the new Q.PEAK BLK-G3 is the aesthetic model athlete. The third module generation from Q CELLS has been optimised across the board: improved output yield, higher operating reliability and durability, quicker installation and more intelligent design – Made in Europe.

INNOVATIVE ALL-WEATHER TECHNOLOGY

Maximum yields with excellent lowlight and temperature behaviour.

Increased cell efficiency due to full-square monocrystalline cells.

ENDURING HIGH PERFORMANCE

Long-term Yield Security due to Anti PID Technology1, Hot-Spot Protect, and Trace able Quality Tra.Q™.

Long-term stability due to VDE Quality Tested – the strictest test program.

SAFE ELECTRONICS

Protection against short circuits and thermally induced power losses due to breath able junction box and welded cables.

Increased flexibility due to MC4-intermateable connectors.

PROFIT-INCREASING GLASS TECHNOLOGY

Reduction of light reflection by 50%, plus long-term corrosion resistance due to high-quality »Sol-Gel roller coating« processing.

LIGHTWEIGHT QUALITY FRAME

Stability at wind loads of up to 5400 Pa with a module weight of just 19 kg due to slim frame design with high-tech alloy.

MAXIMUM COST REDUCTIONS

Up to 29% lower logistics costs due to higher module capacity per box.

EXTENDED WARRANTIES

Investment security due to 12-year product warranty and 25-year linear performance warranty2.





  1. APT test conditions: Cells at -1000 V against grounded, with conductive metal foil covered module surface, 25°C, 168h
  2. See data sheet on rear for further information.
MECHANICAL SPECIFICATION
Format 1670 mm x 1000 mm x 35 mm (including frame)

Click to Zoom

Weight 19 kg
Front Cover 3.2 mm thermally pre-stressed glass with anti-reflection technology
Back Cover Black Composite film
Frame Black Anodised aluminium
Cell 6 x 10 monocrystalline solar cells
Junction box 110 mm x 115 mm x 23 mm Protection class IP67, with bypass diodes
Cable 4 mm² Solar cable; (+) 1210 mm, (-) 1210 mm
Connector SOLARLOK PV4, IP68
ELECTRICAL CHARACTERISTICS
PERFORMANCE AT STANDARD TEST CONDITIONS (STC: 1000 W/m², 25˚C, AM 1.5G SPECTRUM)1
NOMINAL POWER (+5W/-0W) [W]  260  265 270 275
Average Power  PMPP [W] 262.5 267.5 272.5 277.5
Short Circuit Current  ISC [A] 9.02 9.08 9.14 9.21
Open Circuit Voltage  VOC [V] 37.93 38.22 38.51 38.80
Current at PMPP  IMPP [A] 8.53 8.60 8.67 8.74
Voltage at PMPP  VMPP [V] 30.77 31.10 31.42 31.73
Efficiency (Nominal Power)  η [%] ≥15.6 ≥15.9 ≥16.2 ≥16.5
PERFORMANCE AT NORMAL OPERATING CELL TEMPERATURE (NOCT: 800 W/m2, 45 ±3˚C. AM 1.5G SPECTRUM)2
NOMINAL POWER (+5W/-0W)  [W] 260 265 270 275
Average Power  PMPP [W] 193.3 197.0 200.7 204.3
Short Circuit Current  ISC [A] 7.27 7.32 7.37 7.43
Open Circuit Voltage  VOC [V] 35.08 35.35 35.63 35.90
Current at PMPP  IMPP [A] 6.70 6.76 6.82 6.88
Voltage at PMPP  VMPP [V] 28.85 29.14 29.44 29.72
Measurement tolerances STC: ±3% (Pmpp); ±10% (Isc, Voc, Impp, Vmpp) 2 Measurement tolerances NOCT: ±5% (Pmpp); ±10% (Isc, Voc, Impp, Vmpp)
TEMPERATURE COEFFICIENTS (AT 1000W/m2, 25°C, AM 1.5G SPECTRUM)
Temperature Coefficient of ISC  α [%/K]  +0.04 Temperature Coefficient of VOC  β [%/K]  −0.33
Temperature Coefficient of PMPP  Y [%/K]  −0.42



[module-289]



PROPERTIES FOR SYSTEM DESIGN
Maximum System Voltage VSYS [V] 1000 Safety Class II
Maximum Reverse Current IR [A] 20 Fire Rating C
Wind /Snow Load (in accordance with IEC 61215) [Pa] 5400 Permitted module temperature on continuous duty -40°C up to +85°C
