Enphase M250 Micro Inverter

Enphase M250 Micro Inverter

$USD 220.00

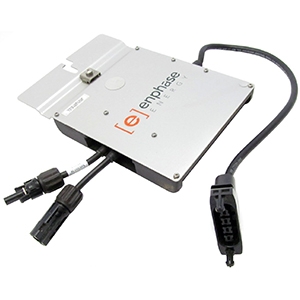

Enphase M250Micro Inverter

Micro Inverters


Deigned for 60 cell panels up to 300 Watts - The Enphase M250Micro Inverter leads the industry in performance and reliability with a full 25 year warranty. The simplified design and trunk cable management save time on installation and allow for future expansion at any time. Isolated DC circuit means no Ground Electrode Conductor is needed. Optional Envoy Communication Gateway and the web-based Enlighten monitoring complete the Enphase System. With reliability greater than 99.8%, the Enphase has earned it reputation as the leader in Micro inverters.

Mechanical Data & Components
Enclosure Rating: NEMA 6
Dimensions: 6.8 × 6.72 × 1.18 inches
Weight: 4.4 pounds
Electrical Specifications
Peak Inverter Efficiency: 96.5%
CEC Weighted Efficiency: 96%
Recommended PV Input (STC): 300W
Maximum DC Input Voltage: 48V
Maximum DC Input Current: 9.8A
MPPT Voltage Range: Min. Voltage: 27Volts Max. Voltage: 39Volts
Output AC Voltage: 240VAC
AC Nominal Voltage: 208 V 240 V
AC Frequency: 60Hertz
Continuous AC Power Output: 240Watts
Nominal AC Voltage: 240Volts
Nominal AC Current: 1Ampers
