2nd Heating Zone for Shop

2nd Heating Zone for Shop

$USD 1,208.33

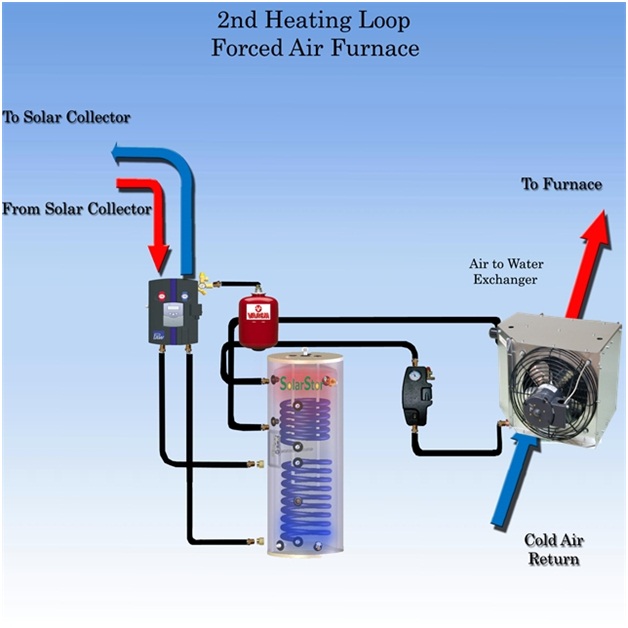

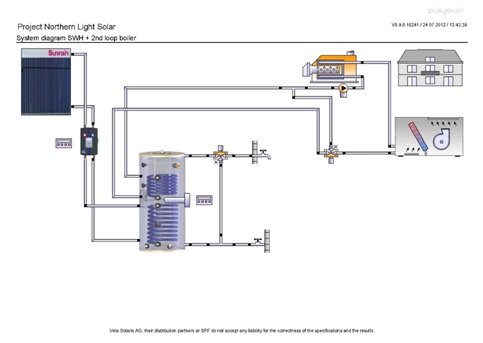

Integrate a solar water heating system into your shop or garage with this quick Plug n' Save optional heating loop. The 2nd heating loop quickly plugs into the top heat exchanger found in either the SolarStor 80 gallon or SolarStor 119 gallon tanks. The Moline Air Handler and loop is controlled by the RESOL controller and a 2nd pump station. If there is heat demand and the solar storage tank's top temperature exceeds the return supply temperature of the furnace, then the pump is activated and heat is transferred from the solar tank's top heat exchanger into an-air-to-water air handler located mounted on the wall or ceiling. This way stored energy is transferred from the solar tank providing energy to the home's heating system. Optionally the 4.5 Kw heater can be turned on to guarantee energy even during periods of low sun.


  • Complete Pump Station with 3 speed Wilo pump, flow meter, service valves.
  • Modine HC 108
  • 50 feet of Aurora twin Flex Stainless steel 3/4" piping
  • All Quick connect Aurora fittings
  • Expansion tank
  • Moline Air handler

Moline Air Handler

Moline Air Handler
